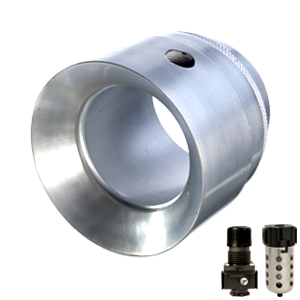

2" Adjustable Air Amplifier
Nex Flow™ Adjustable Air Amplifiers take energy from a small volume of compressed air to produce high velocity, high volume, lower pressure output airflow.
Adjustable Air Amplifier Features:
- Adjustable air output
- Lower compressed air consumption than ejectors and venturis.
- Maintenance free with output easily controlled, safe to use.
- The Adjustable Flow Air Amplifier is quiet, efficient and can amplify flows up to 20 times their input air consumption rate.
- Especially suited for cooling hot products.
- The higher velocity air flow and better directed air stream provide cooling of up to 30% faster versus fans.
Available in either Anodized Aluminum or Stainless Steel. Nex Flow™ Adjustable Air Amps are available in three sizes: 1-1/4 inch, 2 inch and 4 inch.
| Air consumption at 5 Bar | 74dB(A) |
| Internal diameter | 51 mm |
| Air Amplification | 16:1 |
| Blowing pattern | Wide |
| Connection type | Female 3/8″ |
| Material | Aluminum or Stainless steel |
| Shims | Stainless Steel |
| Meets the OSHA directives | Yes |
| Suitable for OEM’s | Yes |
| Air consumption at 5.5 Bar | 37 Nm³/h |
| Air Flow at outlet | 592 Nm³/h |
| Applications | Blow Off and Vacuum |
| Air Velocity at outlet | 85 m/s |
